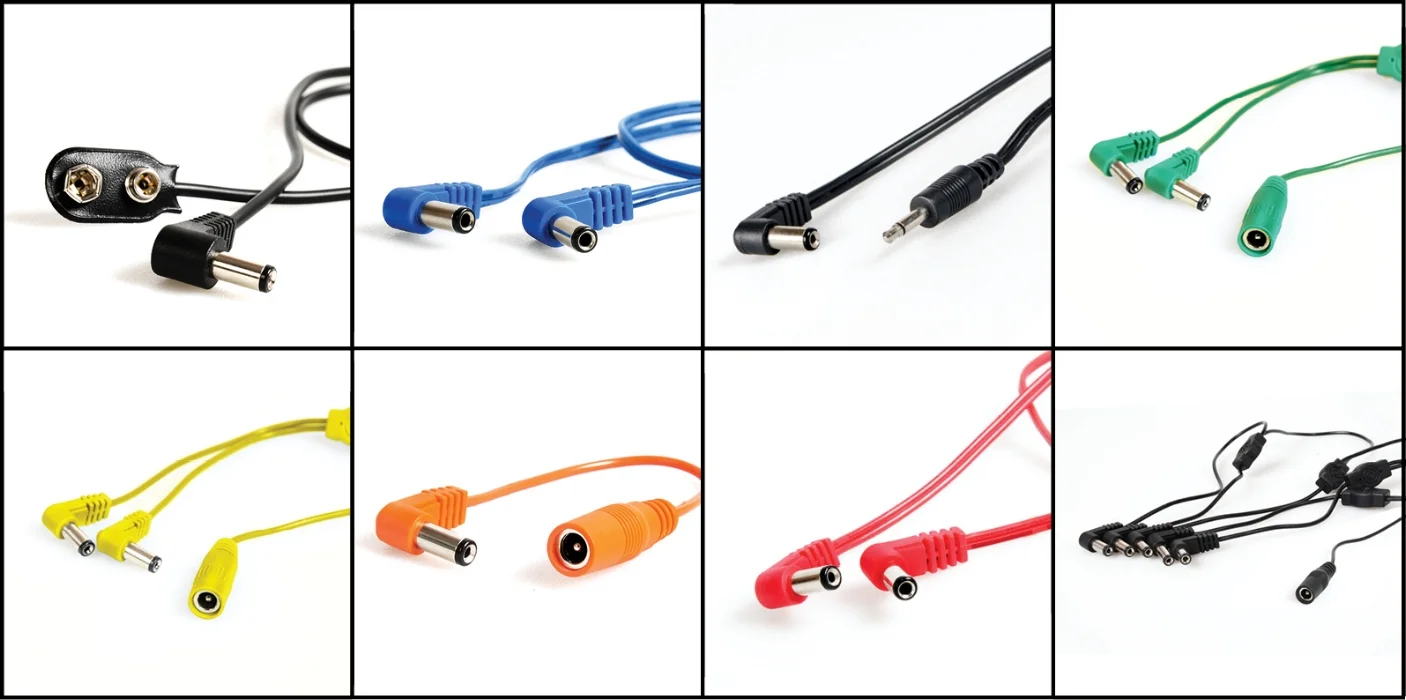

POWER CABLE SURVIVAL KIT
• 8 special use cables for non-standard power requirements

· Red power cable, 50 cm
· Battery clip cable, 50 cm
· Blue power cable, 50 cm
· Black link extension cable, 75 cm
· Black mini jack power cable, 50 cm
· Orange polarity inverter cable, 10 cm
· Yellow voltage doubler adaptor, 20 cm
· Green Current doubler adaptor, 20 cm
BATTERY CLIP CABLE

• Cable length: 50 cm/20”
• 2.1 mm barrel plug - 9V battery clip
• To connect pedal with 9V battery operation to a power supply
VOLTAGE DOUBLER

• Cable length 55 cm / 22”
• 2.1 - 2x 2.1 mm barrel plug
• Combines 2 isolated outputs from a power supply into one DC plug and doubles the voltage
VOLTAGE DOUBLER ADAPTER

• Cable length 20 cm / 8”
• 2.1 female - 2x 2.1 mm barrel plug
• Combines 2 isolated outputs from a power supply into one female plug and doubles the voltage
12V AC CABLE

• Cable length 50 cm / 20”
• 2.1 - 2.5 mm barrel plug
• To connect pedals with 2,5 mm power jack to a power supply
CURRENT DOUBLER

• Cable length 55 cm / 22”
• 2.1 - 2x 2.1 mm barrel plug
• Combines 2 isolated outputs from a power supply into one DC plug and doubles the current

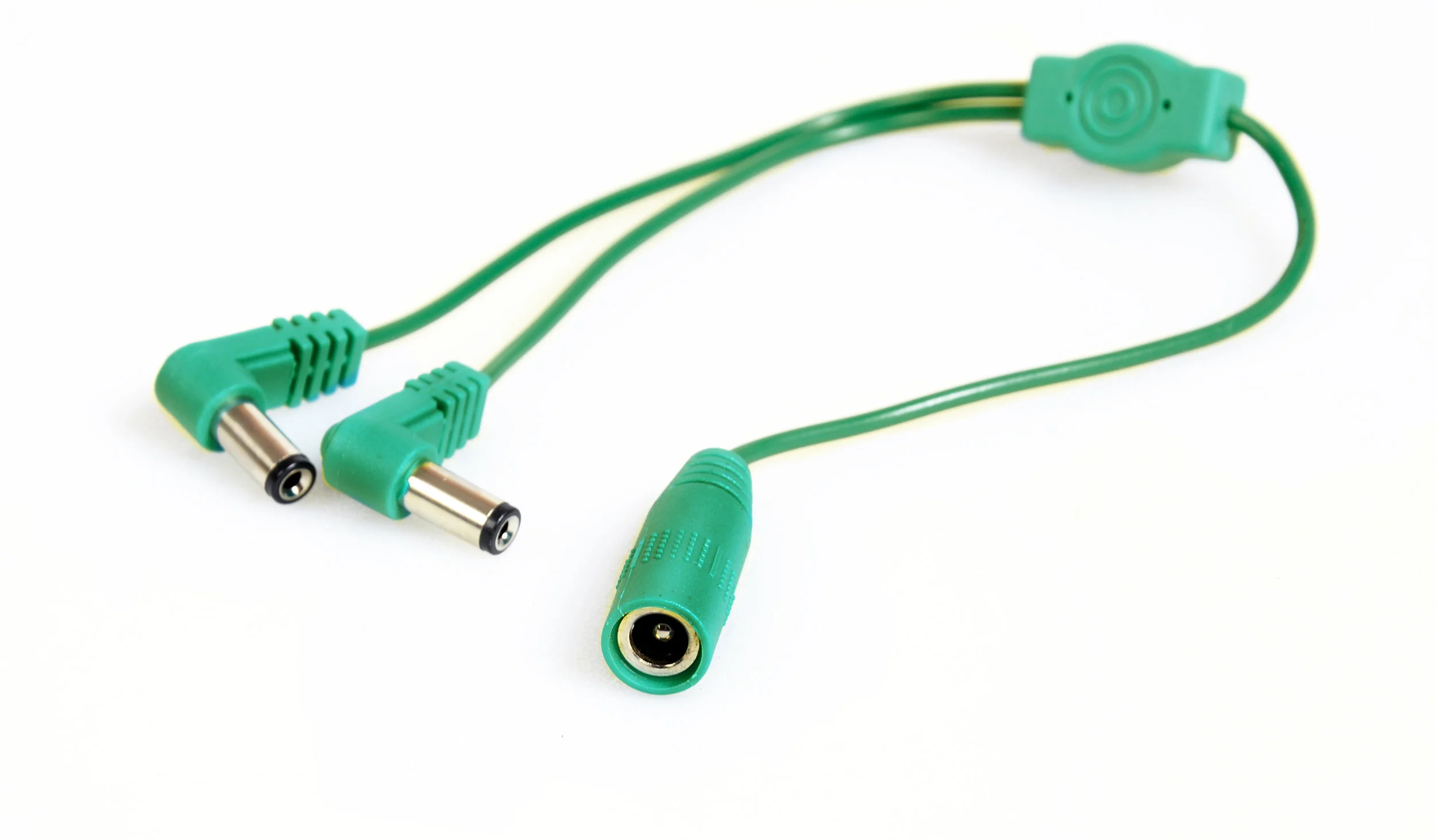

CURRENT DOUBLER ADAPTER

• Cable length: 20 cm / 8"
• 2,1 female - 2x 2,1 mm barrel plug
• Combines 2 isolated outputs from a power supply into one female plug and doubles the current
12V AC LINE 6 CABLE

• Cable length: 50 cm/20”
• 2.5 - 2.5 mm barrel plug
• To connect AC powered pedals (like Line 6 M-series) to a power supply

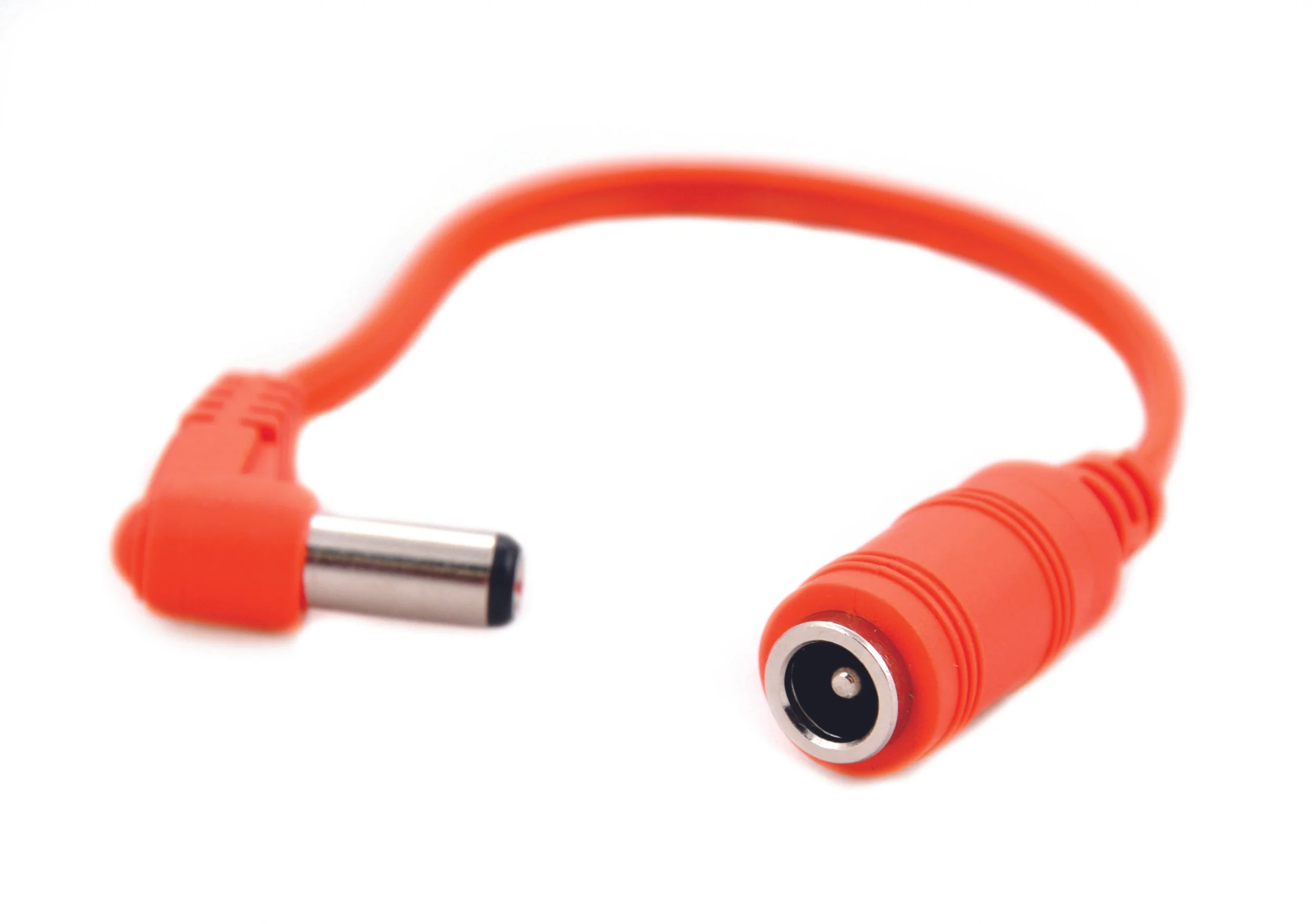

POLARITY INVERTER

• Cable length 10 cm / 4”
• 2.1 mm barrel plug - 2.1 mm female barrel plug
• To connect pedals with inverted polarity to power supply
MINI JACK POWER CABLE

• Cable length 50 cm / 20”
• 2.1 - 3.5 mm Mini Jack
• To connect pedals with mini jack plugs to power supply

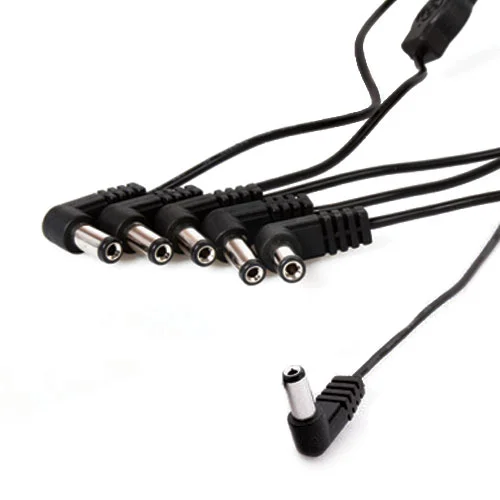

LINK EXTENSION CABLE

• Cable length 75 cm / 28½”
• 2.1 - 5x 2.1 mm barrel plug
• To extend a power cable with 5 connectors Starts with a female plug

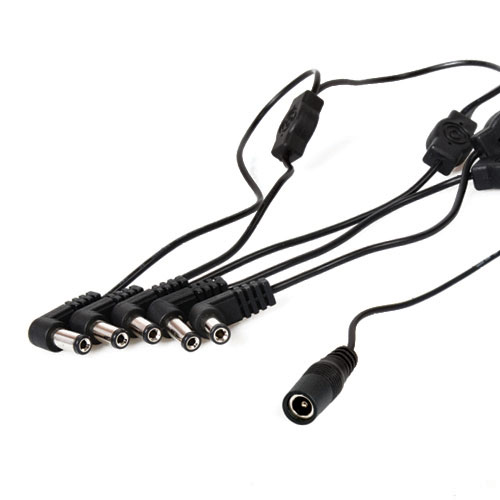

LINK POWER CABLE

• Cable length 75 cm / 28½”
• 2,1 - 5x 2,1 mm barrel plug
• To connect up to 5 pedals to one output on a power supply

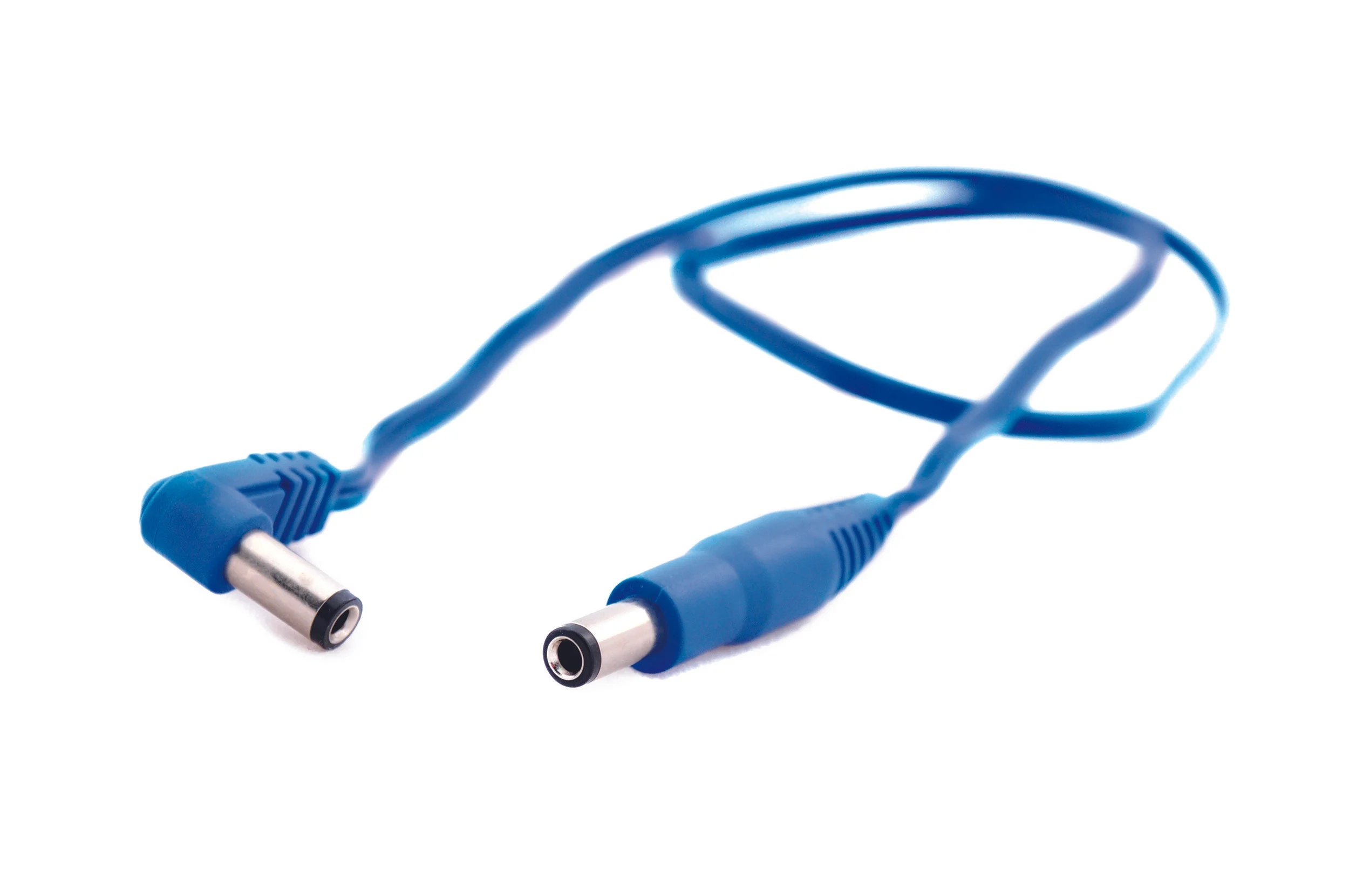

POWER CABLE

• Cable length 20, 75 or 100 cm / 8, 28½, 39”
• 2.1 - 2.1 mm barrel plug
• To connect pedal to power supply
POWER CABLE - ANGLED

• Cable length 20, 50 or 75 cm / 8, 20, 28½”
• 2.1 - 2.1 mm barrel plug
• Angled plugs
• To connect pedal to power supply

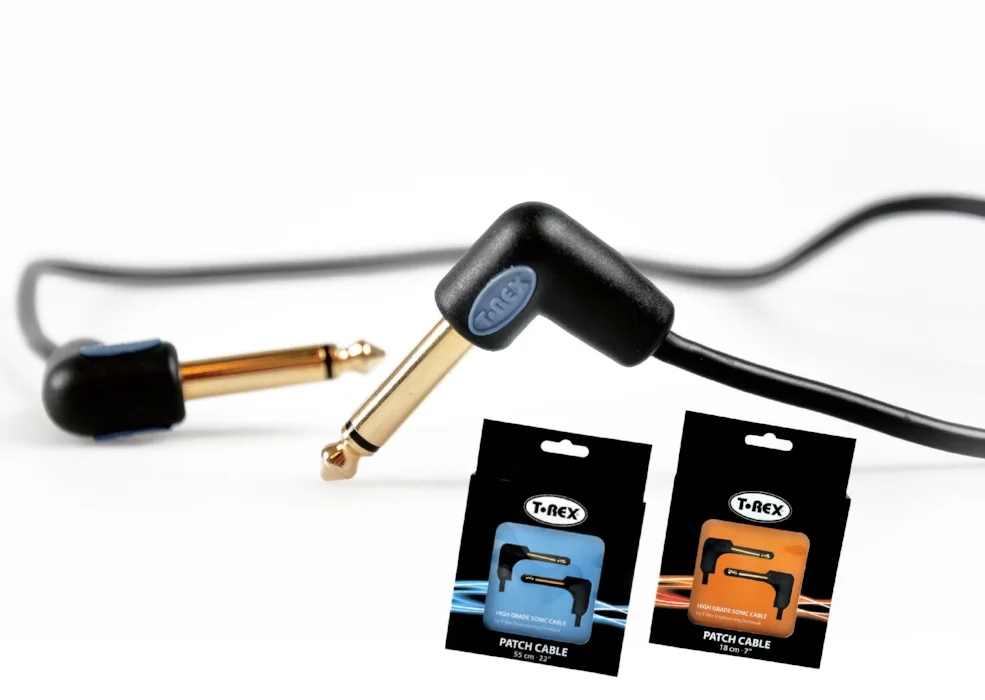

T-REX PATCH CABLE

T-Rex has created a new series of cables featuring gold-plated plugs, oxygen-free copper cable, extra shield to eliminate noise and molded strain relief for the utmost durability. T-Rex cables are designed to improve your signal flow and to ensure you maintain your original sound.
• 18 cm / (7“)
• 55 cm / (22 “)

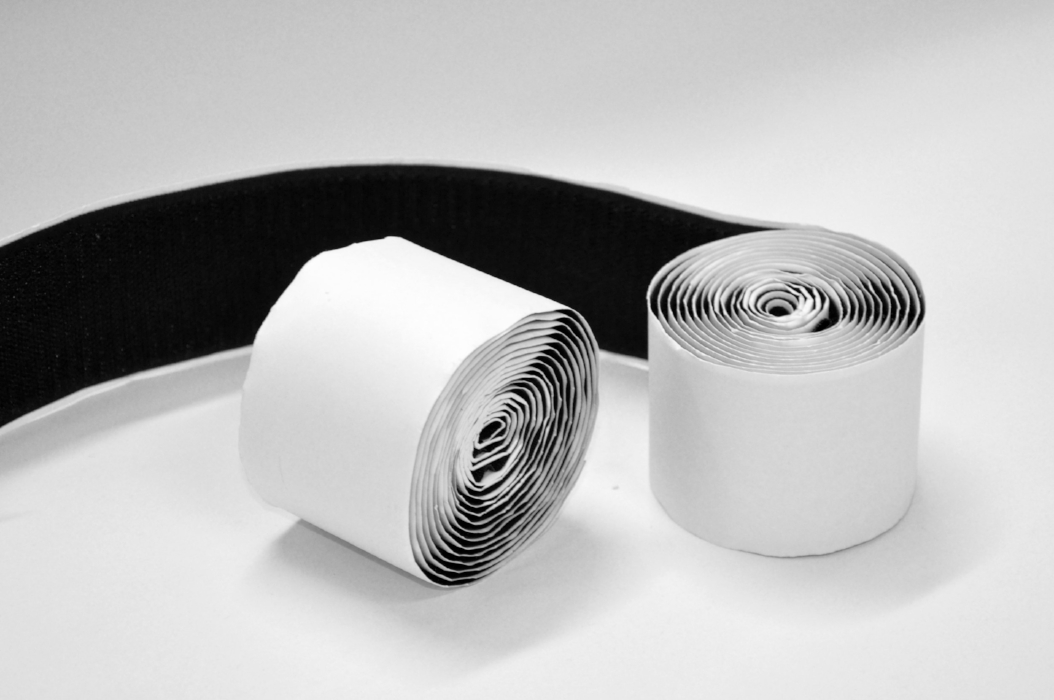

TONE ATTACH

• Hook-and-loop fastener
• Length 2.19 m / 7.2 ft
• Sticky back
