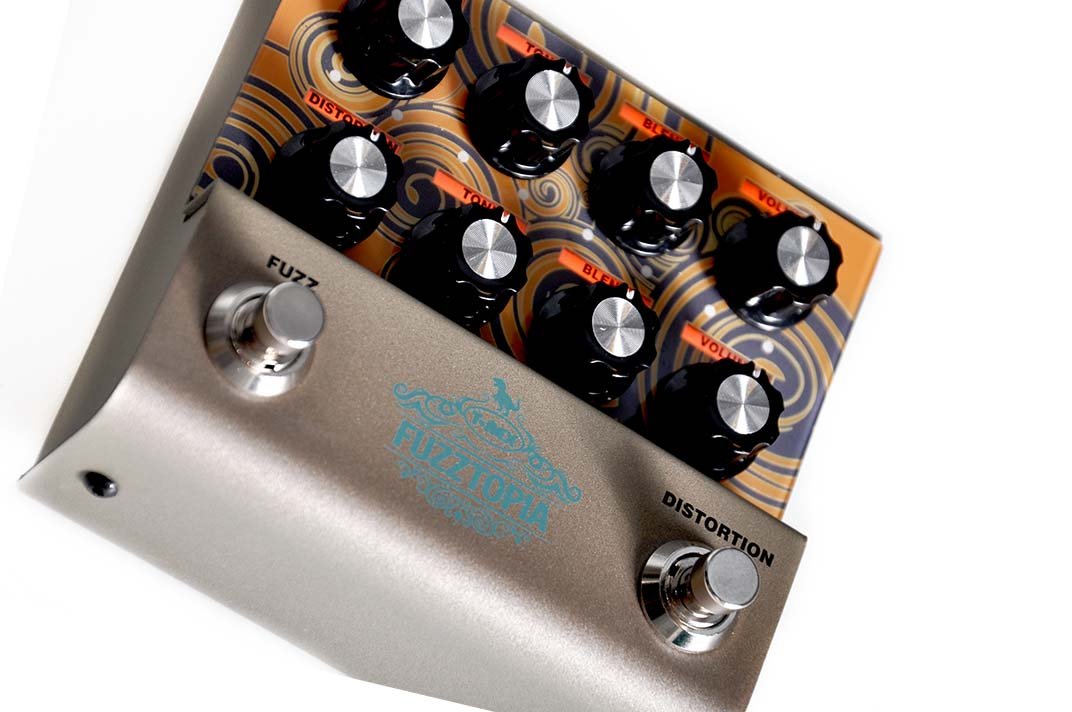

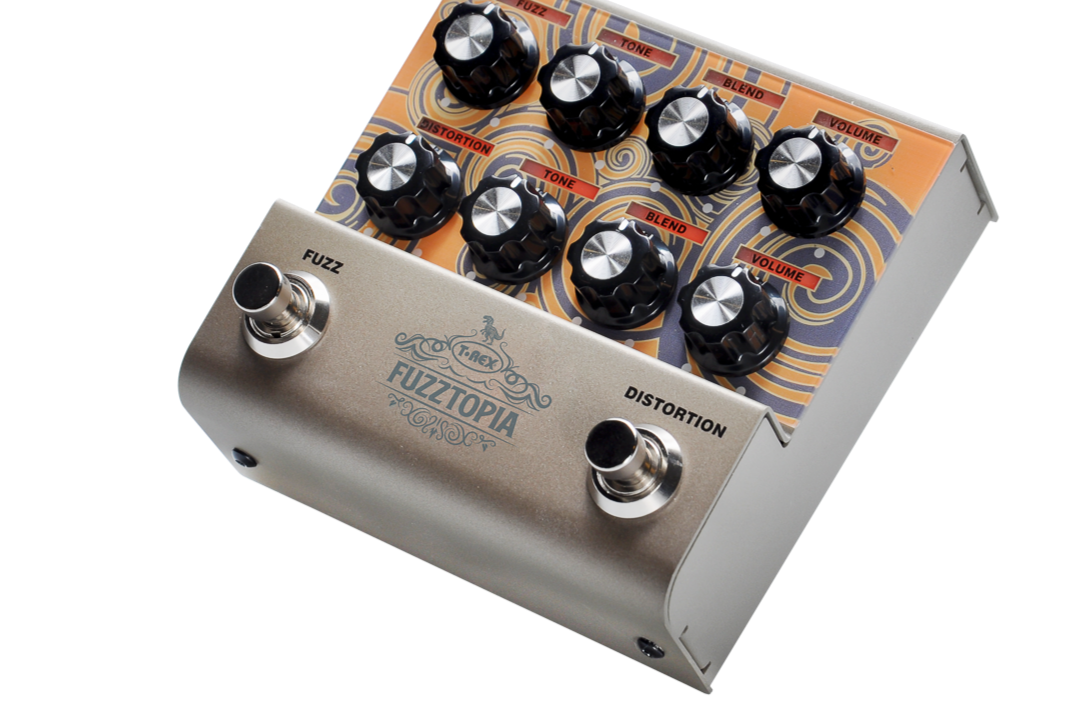

T-REX FUZZTOPIA

FUZZ & DISTORTION

The T-Rex FuzzTopia is a dual-engine pedal that combines vintage-style hybrid fuzz with classic distortion. Each section offers individual controls for gain, blend (clean/effect mix), and volume, as well as tone shaping on the distortion side. The pedal delivers everything from subtle bite to full, saturated fuzz and rich distortion tones. A rear switch enables either independent or simultaneous operation of both effects, providing flexible routing and sound-stacking options.

Key Features:
• Hybrid unit combining retro fuzz and classic varm distortion
• Blend knobs mix clean and distorted signal for dynamic tonal shaping
• Foot switches control each effect independently
• Rear toggle switch links both effects (simultaneous on/off) or separates them for individual use
• Each sections have Fuzz & Distortion, Tone, Blend, and Volume controls
• Made in Denmark

Downloads

User manual

Product images

Technical specs


    Input impedance @ 1KHz
     > 1M Ohm

    Output impedance @ 1KHz
    < 1K Ohm

    Power supply (included)
    12VDC, 2.1mm barrel plug

    Current draw @ 9VDC
    60 mA

  External connectors
    Input standard jack 1/4", Output jack standard 1/4"

    Controls
    Fuzz, Tone, Blend, Volume

 Distortion, Tone, Blend, Volume

Individual/Both (rear panel)

    Pedal size incl. knobs
 (W x H x D)
    6 x 11,3 x 11,7 cm
 2.36 x 4.45 x 4.61 inch

    Weight excl. packaging
    457 g / 16.12 oz
