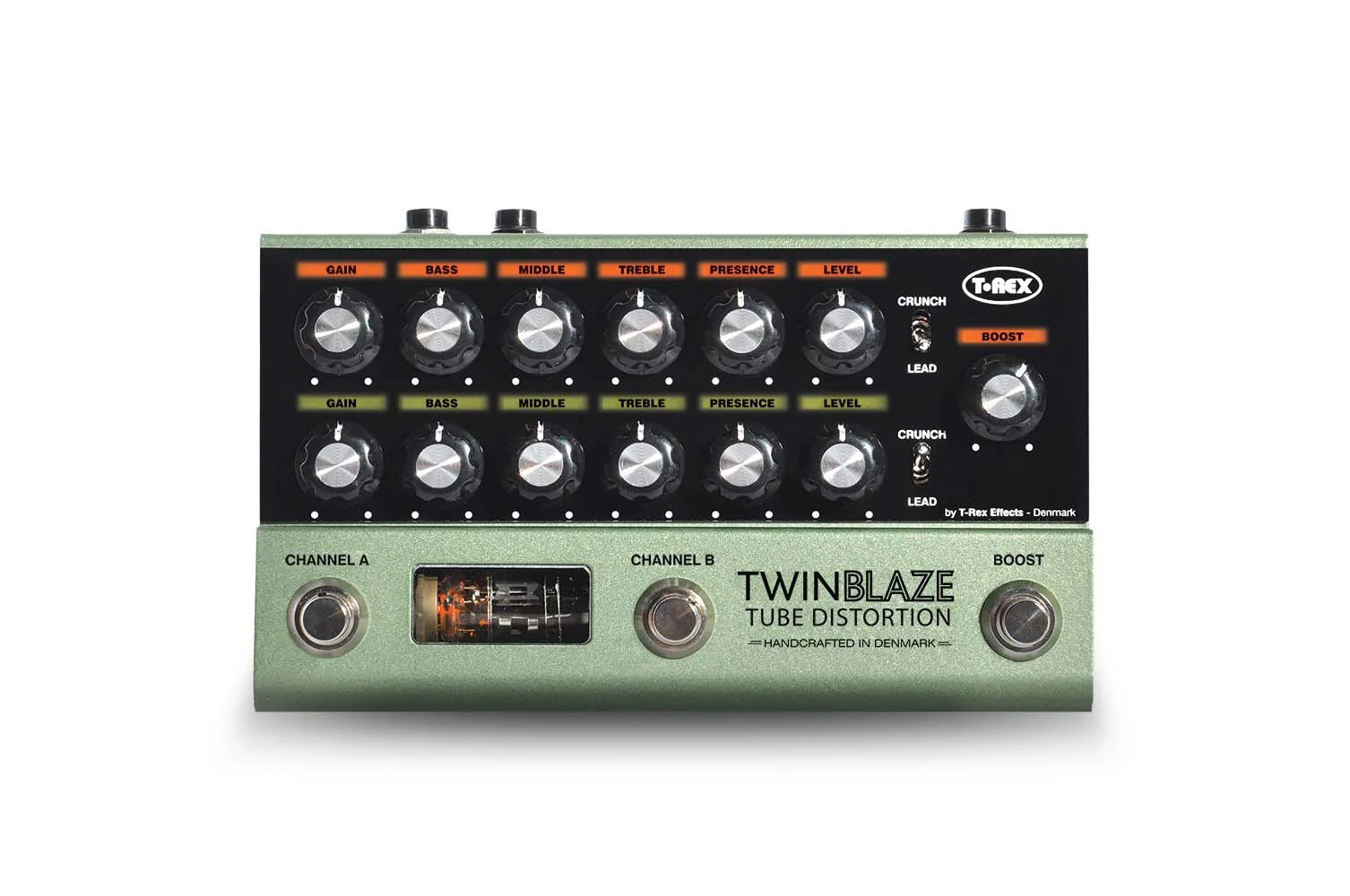

T-REX TWINBLAZE
TUBE DISTORTION
Tube-Powered Dual Channel Overdrive & Distortion
TwinBlaze is a dual-channel, tube-driven distortion and overdrive pedal designed for versatile tone shaping and performance. Built around a real powered 12AX7A preamp tube, it provides authentic tube warmth, dynamics, and natural saturation.
Each of the two identical channels features Crunch and Lead modes, offering a wide range of gain, from gentle blues overdrive to full high-gain distortion. The extended tone control enables you to shape your sound across a broad frequency range, from clear and bright to heavy and dark.
A dedicated 20dB clean boost allows you to increase your volume for solos or accents without altering your tone or gain settings. Whether switching between Crunch and Lead or dialing in different sounds for various songs, TwinBlaze offers the flexibility to adapt.
TwinBlaze includes a speaker simulation output for direct connection to recording equipment or live sound systems, providing a consistent, amp-like tone without the need for mic’d cabinets. A standard output is also available for traditional amp setups.
Handcrafted in Denmark using high-quality components, TwinBlaze is built to provide reliable performance in both studio and live environments.




Key Features:
• Dual identical channels with independent settings
• 12AX7A tube for true analog tube overdrive and distortion
• Crunch and Lead voicing per channel
• Extended EQ controls for precise tone shaping
• 20dB clean boost for volume lift without tone change
• Speaker simulation output for direct recording/live use
• 12V power supply included
• Handbuilt in Denmark
Technical specs
Input impedance @ 1KHz | > 1M Ohm |
---|---|
Output impedance @ 1KHz | < 1K Ohm |
Power supply (included) | 12VDC, 2.1mm barrel plug |
Current draw @ 12VDC | 500 mA |
Tube | High-grade 12AX7 (ECC83) triode tube |
External connectors | Input standard jack 1/4", Output jack standard 1/4", Speaker sim. out: 1/4" standard jack |
Controls | Tone controls: +/- 6dB, Bass: 80Hz, Middle: 1.3KHz, Treble: 2.3KHz, Presence: 2KHz |
Pedal size incl. knobs (W x H x D) |
18.6 x 12 x 6,5 mm 7.32 x 4.72 x 2.56 inch |
Weight excl. packaging | 800 g / 28.22 oz |
